EI-R108 Portable Gamma Energy Spectrometer

Keyword:

Category:

Portable Radiation Detection System

Tel:

+86-021-33909300

E-mail：

market@eastimage.com.cn

Consultation

Related products

Description

Product Instruction

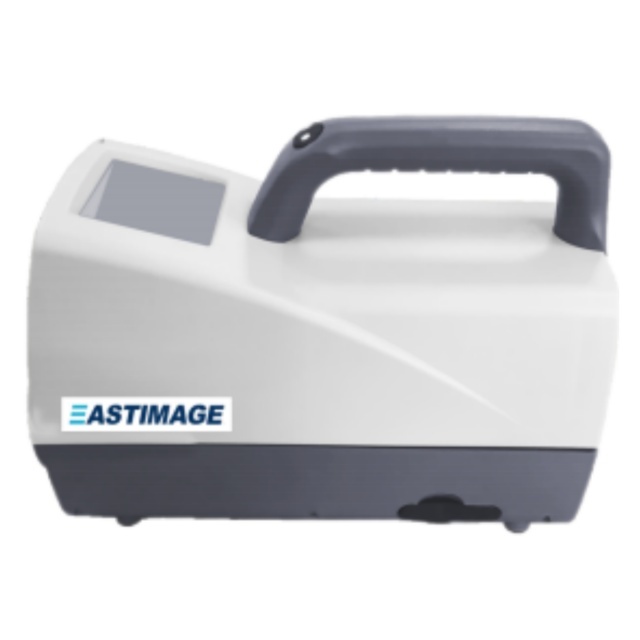

EI-R108 Portable Gamma Energy Spectrometer is a multifunctional radioactive material detection equipment, combining nuclide identification, energy-spectrum analysis, dose rate measurement, source location and other functions in one, optional high -performance 6LiI(Eu) scintillation neutron detector, a machine to achieve simultaneous detection of neutrons and gamma rays, it has been widely used in environmental protection, port, public security, underground, border guard and other industries.

Functional features

–3.5" HD colour LCD touchscreen with two keys on the handle for one-handed operation

– Continuously adjustable alarm thresholds, audible and visual alarms

– Built-in automatic natural nuclide stabilisation spectrum with automatic and manual nuclide identification

– Network port communication, dedicated software for remote monitoring and management in real time

– Complies with GB/T 18268.1-2010, ANSI N42.34 and other relevant standards

Application areas

– Nuclear power plants

– Radiation source search

– Customs, terminal cargo inspection

– Reprocessing of radioactive material during cecommissioning of nuclear facilities

– Radiation protection for nuclear regulatory and "source-related" enterprises and institutions

Technical specifications

Physical properties

Detector type： Gamma: 2" x "2NaI(Tl) scintillation detector.

Optional: 1 "x1" or 1.5 "x1.5" LaBr3 scintillation detector; GM tube detector; 6LiI(Eu) neutron detector

Energy range： γ: 25keV ~ 3MeV; neutrons: 0.025eV ~ 15MeV

Energy resolution： NaI(Tl): 6.8%; LaBr3 : 3.5%

Dose rate range： 10nSv/h to 100μSv/h, extendable to 100mSv/h

Sensitivity： >1400cps/(μSv/h), @ 137Cs

Multi-channel analyzer： 1024 channels

Electrical characteristics

Power supply method： External power adapter with built-in rechargeable lithium-ion battery, automatically switchable, 8+ hours power supply time

Communication methods： USB, RJ45

Mechanical properties

Machine size： 132H×267W×198D(mm)

Weight： ≤ 2.5kg (with battery)

Environmental characteristics

Operating temperature： -20 C to 50 C

Operating humidity： ≤ 90% (30 C, no condensing)
