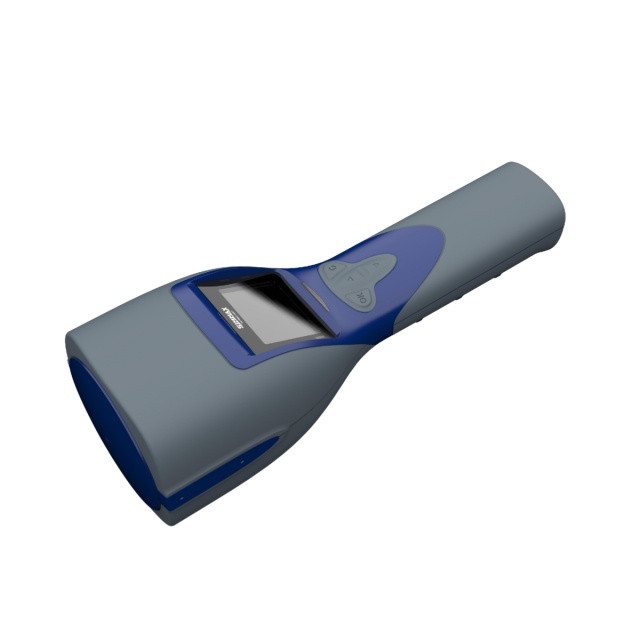

EI-R111 Neutron and Gamma Rate Survey Meter

Keyword:

Category:

Portable Radiation Detection System

Tel:

+86-021-33909300

E-mail：

market@eastimage.com.cn

Consultation

Related products

Description

Product Instruction

EI-R111 Neutron and Gamma Rate Survey Meter is a new handheld radiation survey meter that detects both neutrons and gamma rays. The neutron detector is wrapped with a unique spherical column-shaped slowing body, which features high neutron detection sensitivity, good suppression of interfering gamma radiation fields, miniaturisation, digitalisation and intelligence. It can be used handheld or worn for neutron, x and gamma radiation level measurement and search, etc.

Functional features

– Free switching between count rate, dose rate and cumulative dose

– HD black and white display with manually illuminated backlight

– Independent gamma and neutron measurement channels and alarm alerts

– Continuously adjustable alarm thresholds, audible, visual and iconic alarms at the same time

Application areas

– Radiation protection of nuclear facilities, nuclear regulatory and source-related enterprises and institutions

– Environmental monitoring department for official duties, disease control and health department for emergency response

– Security precautions for major events, embassies and consulates abroad

– Customs, border control and other nuclear and radiological counter-terrorism, prevention of illegal radioactive material transport and radiological terrorist attacks, etc.

– Third party testing agencies

Technical specifications

Physical properties

Neutron Gamma

Detector type： Neutron “Lil(Eu) scintillation crystals Csl(Tl) scintillation crystals

Energy range： 0.025eV to 14MeV 33keV ~ 3MeV

Dose rate range： 0.1μSv/h~100mSv/h 0.01μSv/h ~ 100ySv/h

Sensitivity： 0.5cps/(μSv/h).@ 252Cf >130cps/(μSv/h).@1Cs

Relative inherent error： ≤+20 %

Alarm methods：When the test data exceeds the set alarm threshold, the LED flashes and an alarm sounds

Data storage methods：Continuous saving: continuous data saving according to the set saving interva

Trigger saving: storage starts when an alarm occurs, storage interval 1 second

Electrical characteristics

Power supply method： 4 size 5 batteries, 100+ hours continuous operation (no backlight or buzzer)

Communication methods： USB

Data storage： Storage for 100,000 data sets

Mechanical properties

Display method： HD black and white LCD

Machine size： Ф90×267(mm)

Weight： 640g (without battery)

Environmental characteristics

Protection class： IP65

Operating temperature： -20 C to 50 C

Operating humidity： ≤ 90% (30 C, no condensing)
