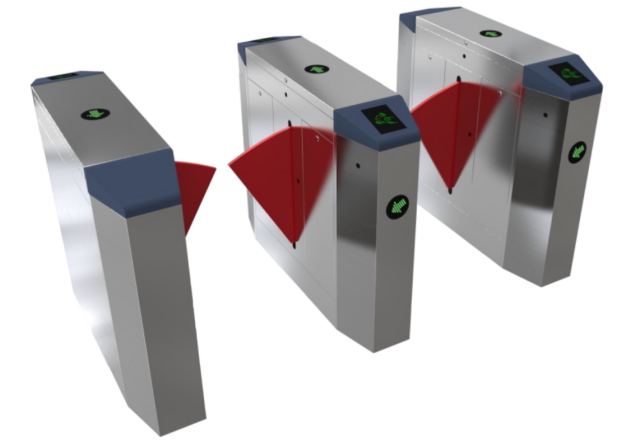

EI-GW300 Series Wing Gate

Keyword:

Category:

Tel:

E-mail：

market@eastimage.com.cn

Consultation

Related products

Description

Technical Parameters

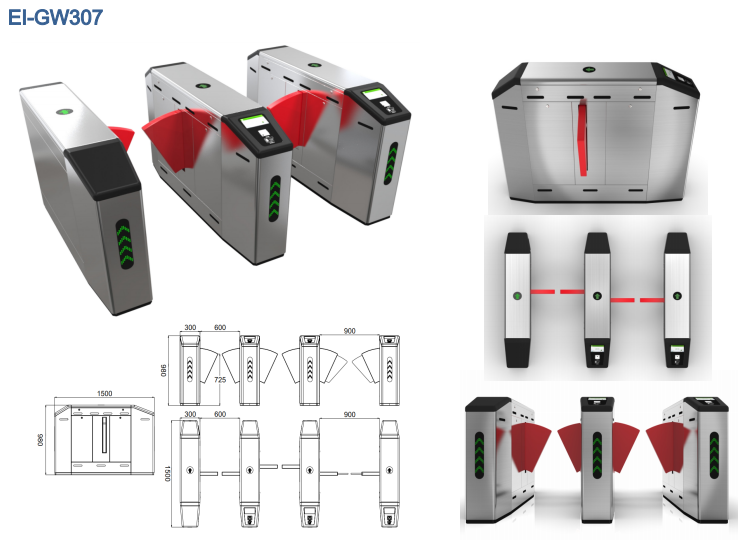

★Overall Dimension(Customizable):L1500xW300xH980mm.

★Material: austenitic stainless steel 304.

★Supply Voltage:AC220V±10V;

★Power Supply Motor:Brushless Motor 24~36VDC.

★Drive motor: Brushless motor 24~36VDC.

★Service life: continuous opening and closing more than 5 million times.

★Infrared sensor: (support more than 8 pairs of configuration)

★Operating temperature:-35℃~+75℃.

★Relative humidity:0~90%(no condensation); (support more than 8 pairs of configurations)

★Communication interface: RS232 serial port.

★Communication protocol: MODBUS protocol

★Maximum channel width: ≤600MM (double wing configuration can support 900MM channel width)

★Passing speed: 45 ~ 50 people / minute; (double wing configuration ≤ 30 people / minute)

★Box structure: frame structure/standard stainless steel shell; both ends of the frosted black baking paint.

★Movement structure: full-height direct-drive movement, upper and lower screws fixed, solid force; high-precision movement and motor direct-drive, higher precision, faster switching speed, longer service life (patented products); (double-flying wing configuration≤minute); (double-flying wing configuration≤minute).

★Double wing movement (optional) running mode using four-link structure, high smoothness, small sound running smooth motor shaft and movement connection position using planetary reducer connection, high efficiency and smooth, and not easy to loosen;

★Application Scene: Suitable for indoor/outdoor pedestrian places; such as: scenic spots/parks/playgrounds/primary and middle schools /higher education ins

titutions/offices/hotels/hotels/residential districts/factories/parks/hospitals/enterprise institutions/government halls/ sports halls/stadiums/etc. / government hall / stadium and other scenes.
