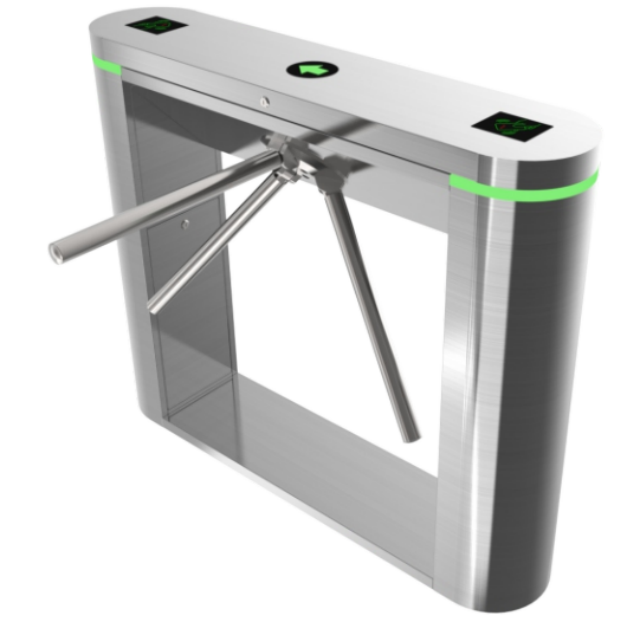

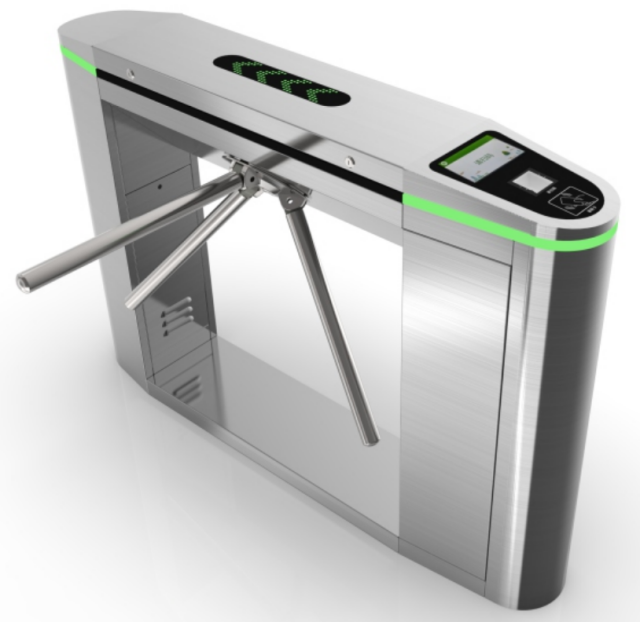

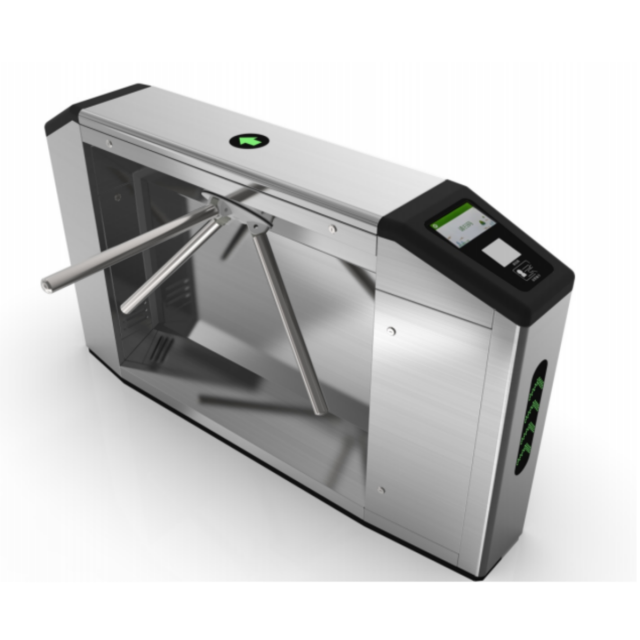

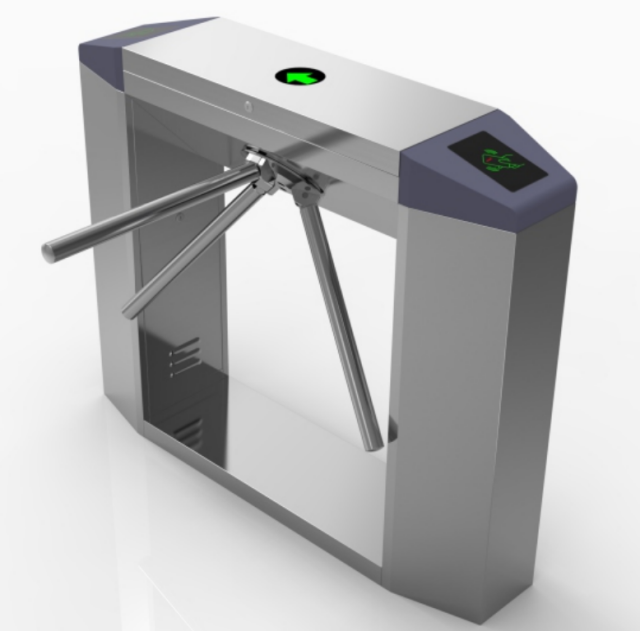

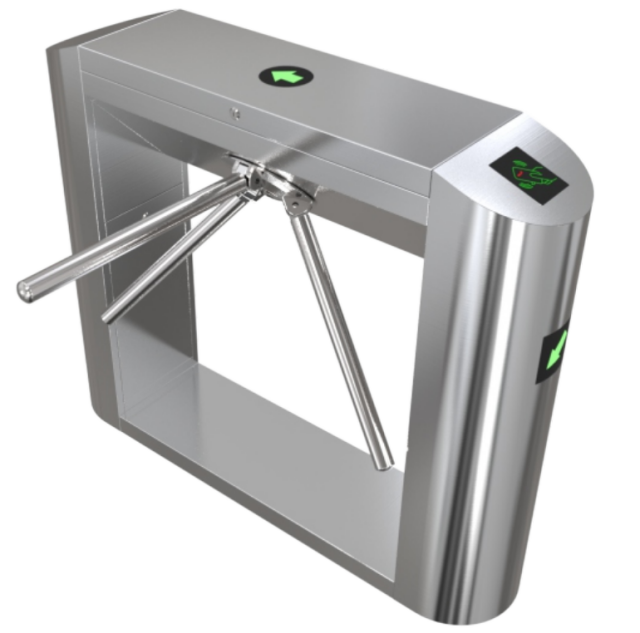

EI-GT100 Series Three Roller Gate

Keyword:

Category:

Tel:

E-mail：

market@eastimage.com.cn

Consultation

Related products

Description

Technical Parameters

EI-GS100Series

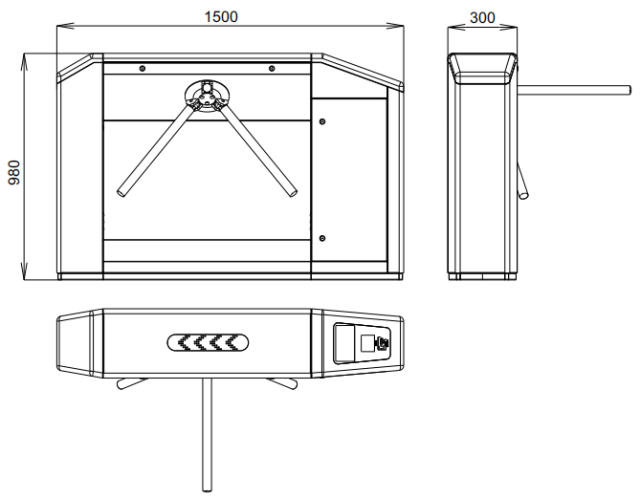

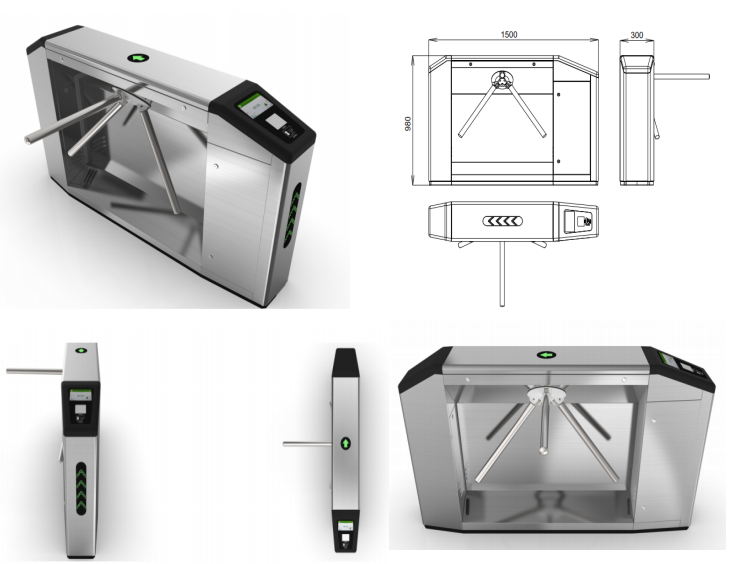

★Overall Dimension(Customizable):L1500xW300xH980mm.

★Material:austenitic stainless steel 304.

★Power supply voltage: AC220V±10V.

★Drive motor: brushless motor 24~36VDC.

★Service life: continuous opening and closing more than 5 million times.

★Operating temperature:-35℃~+75℃.

★Relative humidity: 0~90% (no condensation).

★Communication interface: RS232 serial port.

★Communication protocol: MODBUS protocol.

★Maximum channel width:550~600MM.

★Passing speed:≤30persons/minute.

★Box structure: frame structure/standard stainless steel shell; frosted black baking paint on both ends.

★Extended function:Can be connected to ID, IC card, fingerprint identification, face recognition, finger vein recognition, twodimensional code recognition, ID card recognition, cell phone APP gate opening, human body integrated anti-static equipment, security check door, visitor system, etc.

★Application Scenario: Suitable for indoor/outdoor pedestrian access; such as: scenic spots/parks/playgrounds/primary and secondary schools/higher education institutions/offices/hotels/residential communities/factories/hospitals/enterprises/government halls/sports venues and other scenarios.
