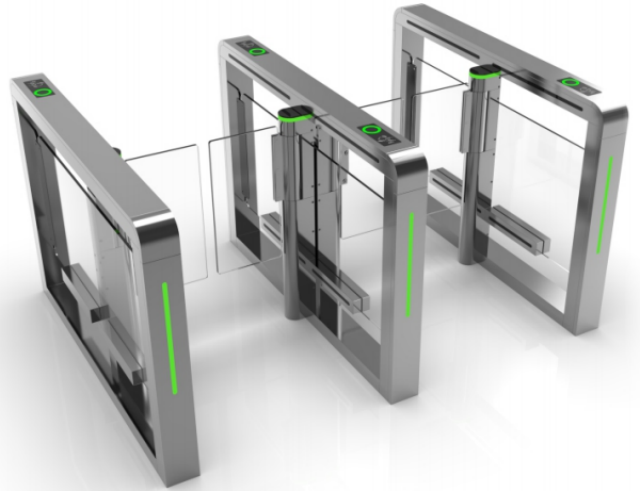

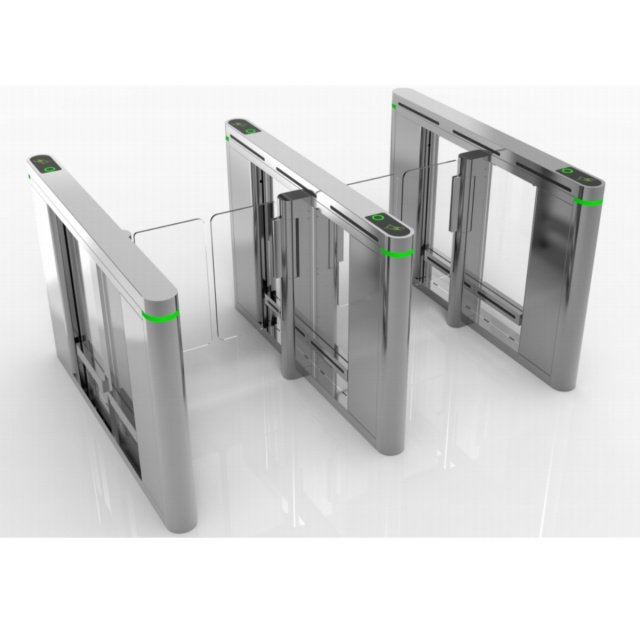

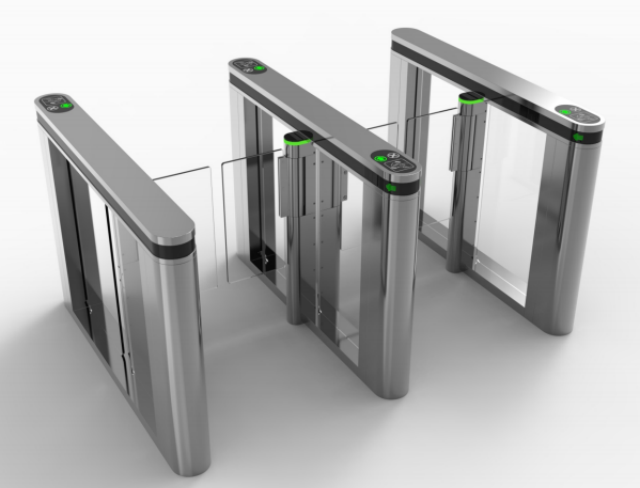

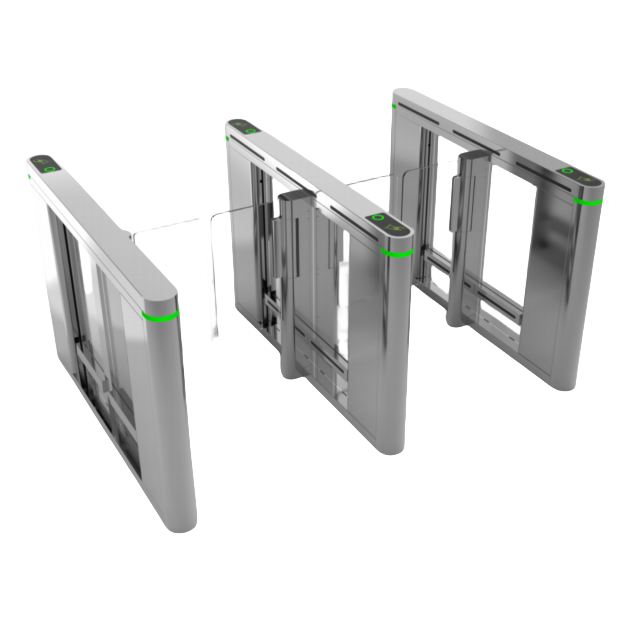

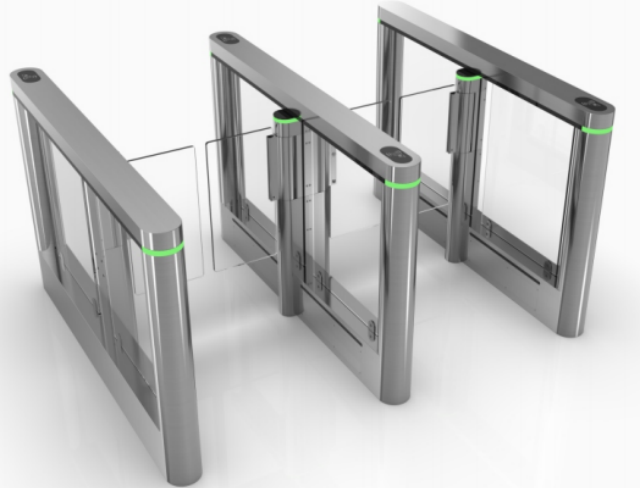

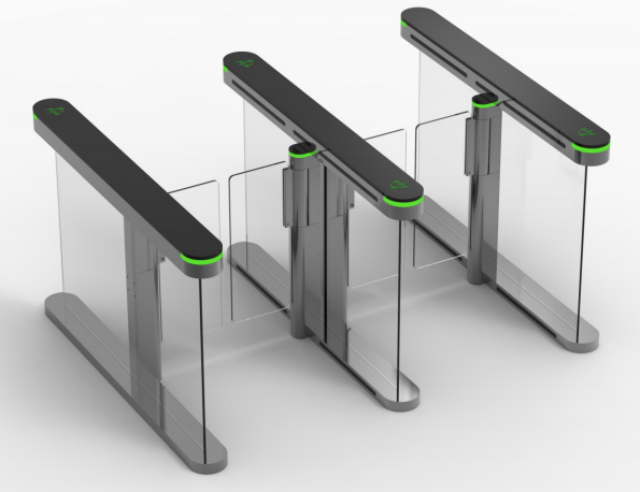

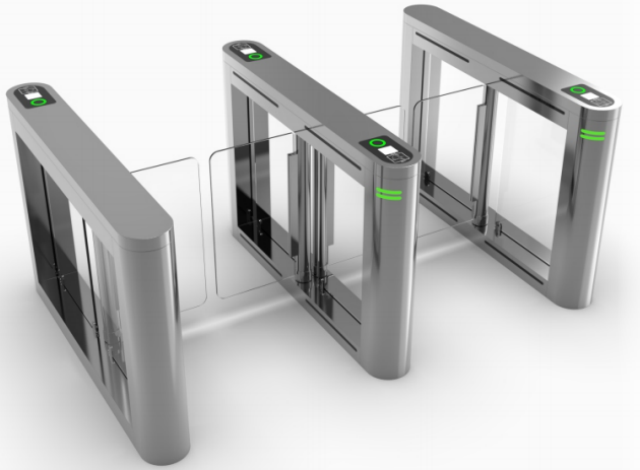

EI-GS600 Series Speed Gate

Keyword:

Category:

Tel:

E-mail：

market@eastimage.com.cn

Consultation

Related products

Description

Technical Parameters

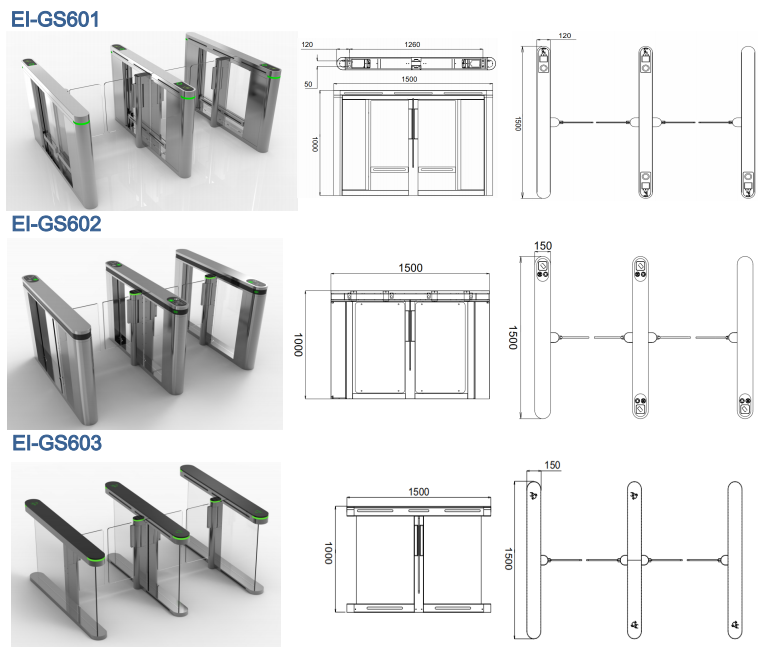

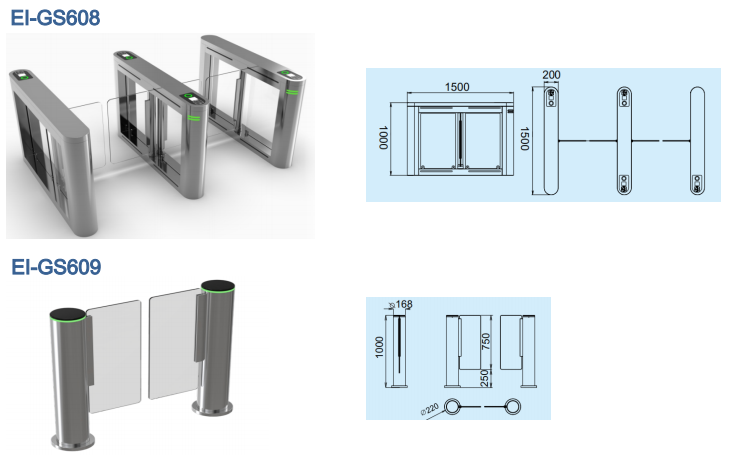

★Dimensions(customizable):L1500xW120xH1000mm.

★Material: austenitic stainless steel 304.

★Power supply voltage: AC220V±10V.

★Drive motor: brushless motor 24~36VDC; (support the same service motor configuration)

★Service life: continuous opening and closing more than 8 million times; (with the service life of up to 12 million times)

★Infrared sensor: 8 pairs; (support more than 8 pairs of configuration)

★Working environment temperature:-35℃~+75℃.

★Relative humidity: 0 ~ 90% (no condensation).

★Communication interface: RS232 serial port.

★Communication protocol: MODBUS protocol

★Pendulum door material: acrylic/tempered glass (only for the same service motors)

★Maximum channel width: ≤ 1200mm; pendulum steering: support one-way and two-way (optional)

★Passing speed:≤45persons/minute.

★Case structure: frame structure/stainless steel shell surface brushed, the whole machine planing groove.

★Movement structure: high-precision anti-collision movement, high-strength clutch, return in case of obstruction, high-strength, impact resistance; servo motor (optional) planetary metal gear reducer high-speed, accurate, silent, average trouble-free use of 12 million times;

★Application Scenario: Suitable for indoor pedestrian passage places; such as: office buildings / hotels / residential communities highend factory park / senior colleges and universities / hospitals / enterprises and institutions / government halls / stadiums / exhibition centers and other scenes.
