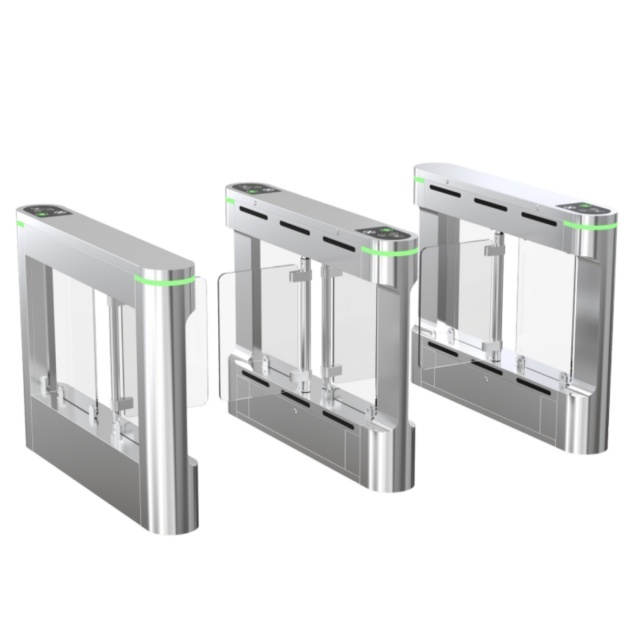

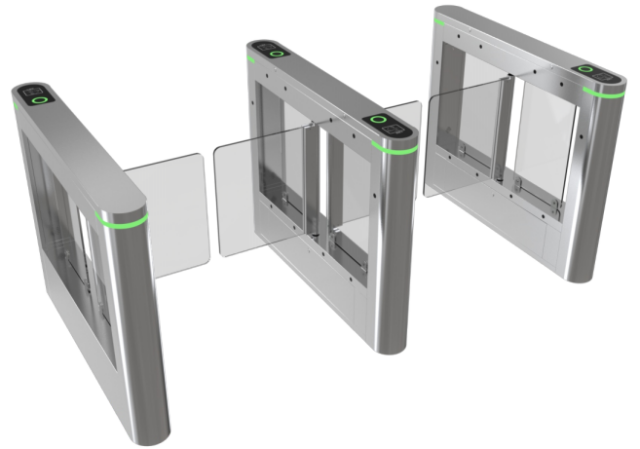

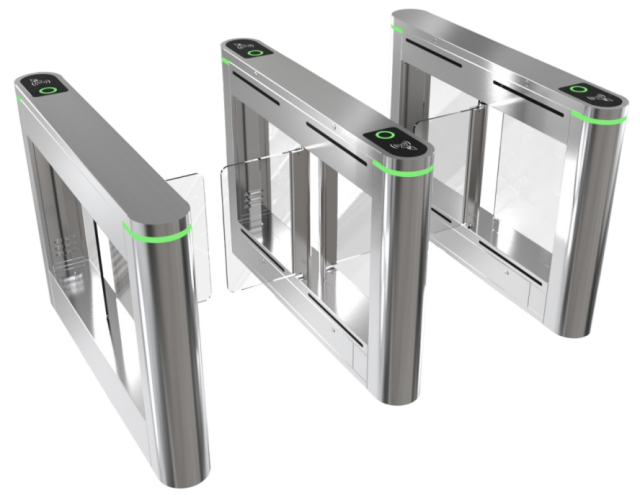

EI-GS200 Series Swing Gate

Keyword:

Category:

Tel:

E-mail：

market@eastimage.com.cn

Consultation

Related products

Description

Technical Parameters

EI-GS201

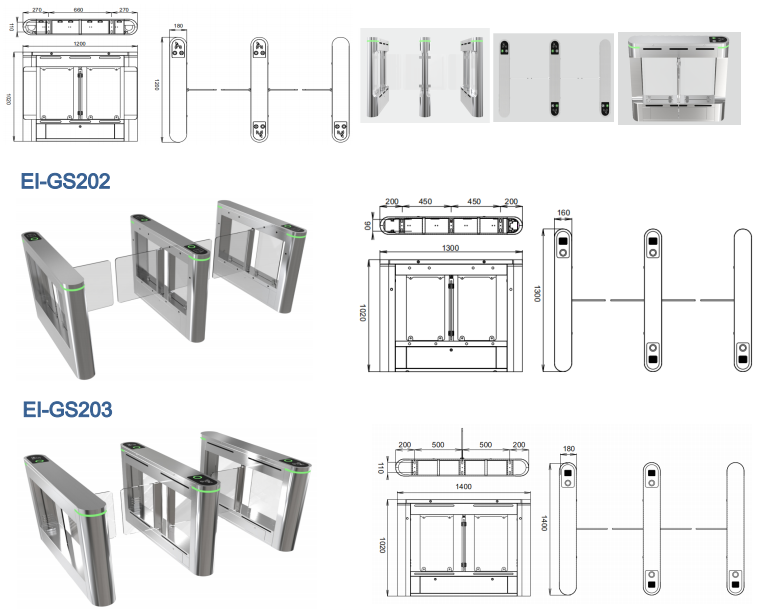

★Overall Dimension(Customizable):L1200xW180xH1020mm.

★Material: austenitic stainless steel 304.

★Supply Voltage:AC220V+10V;

★Driving Motor:Brushless Motor 24~36VDC;

★Service life: more than 5 million times of continuous opening and closing.

★Infrared sensors: 6 pairs.

★Operating Temperature:-35℃~+75℃

★Relative humidity:0~90%(no condensation).

★Communication interface: RS232 serial port.

★Communication protocol: MODBUS protocol

★Maximum channel width:≤830mm.

★Passing speed:≤35 persons/minute.

★Box structure: frame structure/standard stainless steel shell.

★Movement structure: Horizontal oblique tooth anti-collision movement, clutch anti-collision device (optional) (patented product);

★Pendulum steering: support for one-way and two-way (optional).

★Application Scenario: Suitable for indoor/outdoor; pedestrian/bicycle passage places; such as: primary and secondary schools/ higher education institutions/offices/hotels/residential neighborhoods/factory parks/hospitals/enterprises/public offices/government halls/sports stadiums and other scenarios.
