EI-GP500 Series Pan-tilt Gate

Keyword:

Category:

Tel:

E-mail：

market@eastimage.com.cn

Consultation

Related products

Description

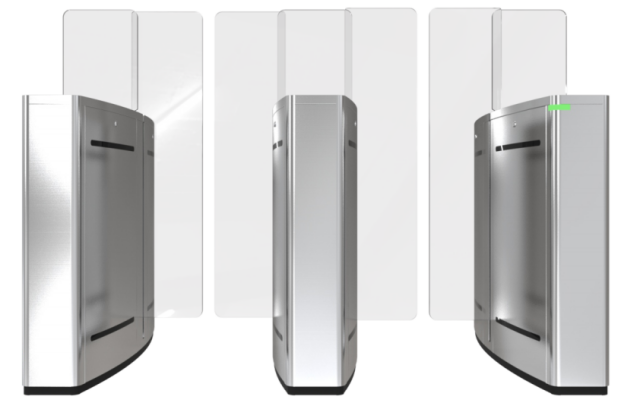

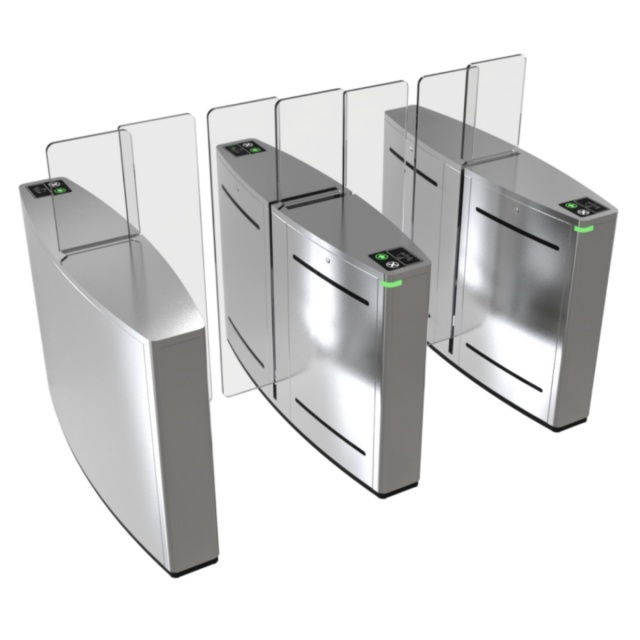

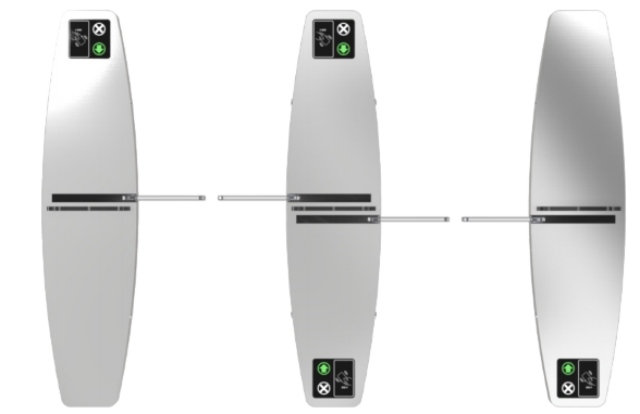

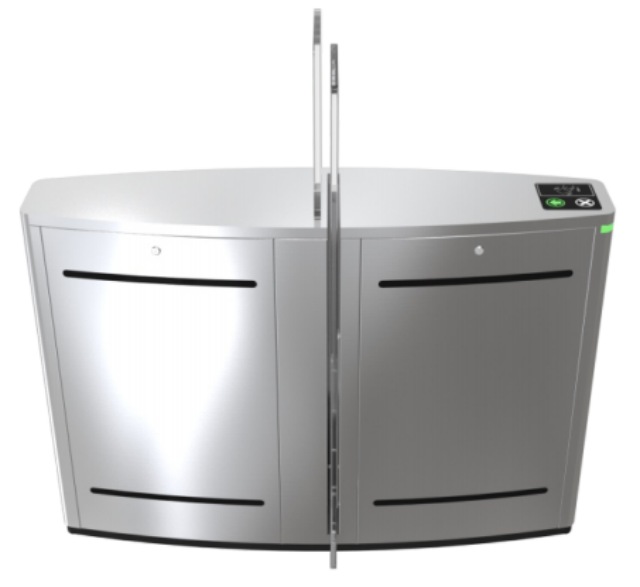

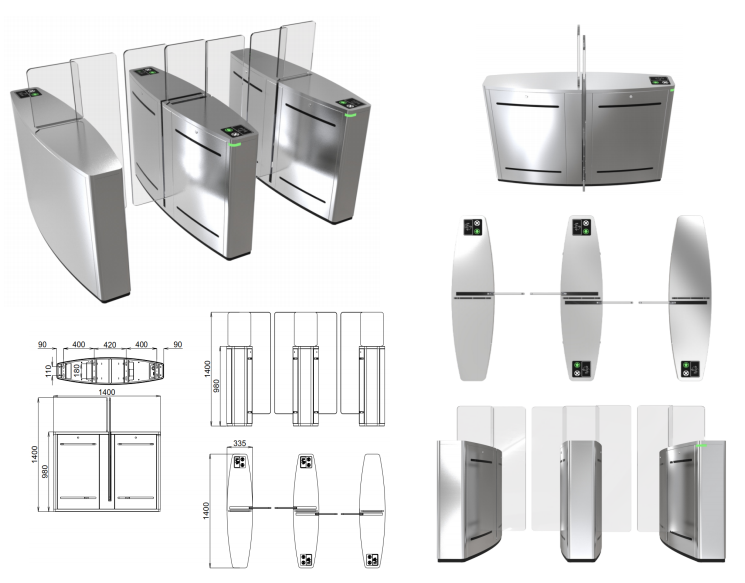

EI-GP505

Technical Parameters

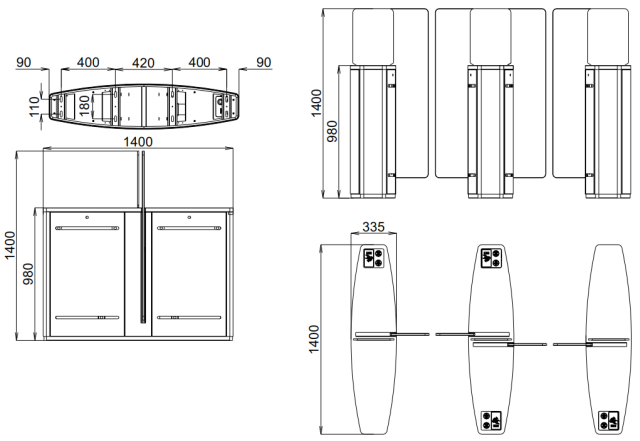

★Overall Dimension(Customizable):L1400xW335xH980mm.

★Material:Austenitic stainless steel 304.

★Power supply voltage: AC220V+10V; and

★Drive motor: Brushless motor 24~36VDC

★Service life: more than 5 million times of continuous opening and closing.

★Infrared sensor: 6 pairs; (support more than 6 pairs of configuration)

★Operating ambient temperature:-35°℃~+75℃℃.

★Relative humidity: 0~90% (no condensation); (support more than 6 pairs of configuration)

★Communication interface: RS232 serial port.

★Communication protocol: MODBUS protocol

★Maximum channel width:550~600MM.

★Passing speed:≤30 persons/minute.

★Box structure: frame structure/standard stainless steel shell.

★Movement structure: full-height direct-drive movement, upper and lower screws, solid force; high-precision movement and motor direct -drive, higher precision, faster switching speed, longer service life (patented products)

★Application Scenario: Suitable for indoor/outdoor pedestrian passage places; such as: scenic spots/parks/playgrounds/primary and secondary schools/higher education institutions/offices/hotels/residential districts/factory parks/hospitals/enterprise and public affairs halls/sports venues and other scenarios

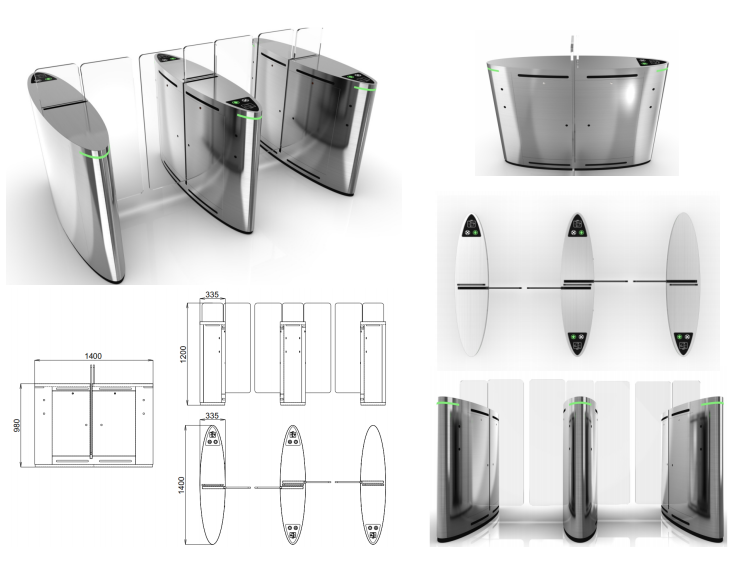

EI-GP508

Technical Parameters

★Overall Dimension(Customizable):L1400xW335xH980mm.

★Material:Austenitic stainless steel 304.

★Supply Voltage:AC220V±10V;

★Drive Motor: Brushless motor 24~36VDC;

★Service life: continuous opening and closing more than 5 million times.

★Infrared sensor: 6 pairs; (support more than 6 pairs of configuration)

★Operating temperature:-35° C ~ +75° C.

★Relative humidity: 0~90% (no condensation); (support more than 6 pairs of configuration)

★Communication interface: RS232 serial port.

★Communication protocol: MODBUS protocol

★Maximum channel width:550~600MM.

★Passing speed:≤30 persons/minute.

★Box structure: frame structure/standard stainless steel shell.

★Movement structure: full-height direct-drive movement, upper and lower screws, solid force; high-precision movement and motor direct drive, higher precision, faster switching gate, longer service life (patented products) Application Scenarios: Suitable for indoor/ outdoor pedestrian places; such as: scenic spots / parks / playgrounds / primary and secondary schools / colleges and universities / offices.

★Primary and secondary schools/higher education institutions/office buildings/hotels/residential neighborhoods/factory parks/ hospitals/enterprises and institutions/government halls/stadiums and other scenarios.
