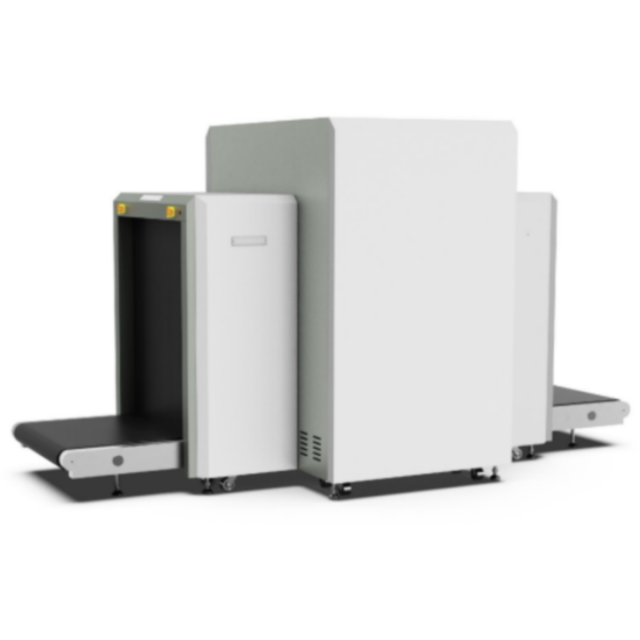

EI-100120DV Dual View Multi-Energy X-Ray Security Inspection Equipment
Eastimage is an industry-leading provider of security inspection products and safety solutions. Established in 2003, the company has 50,000 square meters of independent property rights of the production base. After more than 20 years of development，Eastimage has become a major supplier and a leading R&D and manufacturing base for security products in China.
The EI-100120DV dual-view multi-energy X-ray security inspection equipment can simultaneously display horizontal and vertical views of the inspected objects, effectively detecting concealed prohibited items in packages. It provides users with a secure and reliable intelligent security inspection system service.
Keyword:
Category:
Description
Product Instruction
Eastimage is an industry-leading provider of security inspection products and safety solutions. Established in 2003, the company has 50,000 square meters of independent property rights of the production base. After more than 20 years of development，Eastimage has become a major supplier and a leading R&D and manufacturing base for security products in China.
The EI-100120DV dual-view multi-energy X-ray security inspection equipment can simultaneously display horizontal and vertical views of the inspected objects, effectively detecting concealed prohibited items in packages. It provides users with a secure and reliable intelligent security inspection system service.
Software Function
Image Processing: Black/White, Inverse color, High/Low Penetration, Inorganic/Organic stripping, Super enhancement, Variable absorption, Pseudo-color, etc.
One-Click Image Processing: Customizable function keys for quick image processing based on user needs.
Image Zoom: Up to 64X dynamic continuous zoom & panning for any area.
Fault Indication: Self-diagnostic function, faults alarm,easy troubleshooting.
Explosive/High-Density Alarm: Suspected explosives/High absorption material in the package can be sound and light alarmed.
Image Recall: Supports unlimited image recall, up to the first image from the current startup session.
Image Storage: 500,000 images storage, with traceability for images from the past 90 days.

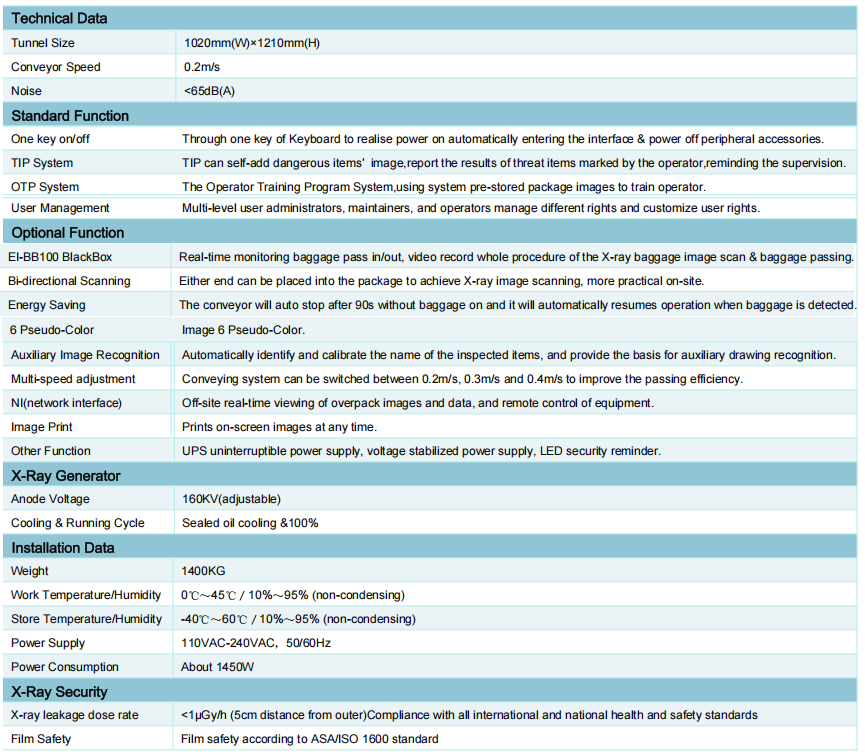

Product Specifications
| Penetrating power | Application:30mm Typical:36mm High-spec:40mm |
| WireResolution | Application:0.16mm（34AWG） Typical:0.101mm（38AWG） |
| StandardLoad | 200kg |
| TunnelSize | 1020×1210mm |
| Generator | 160kV |
| Noise | 60dB |
| Penetration Resolution | 0.511mm（24AWG） |
| Spatial Resolution | Application:1.6mm Typical:1.3mm |
| Conveyor Height | 300mm |
| Scanner Dimensions | 3840×1730×2060mm |
| Package Dimensions | 2800*1930*2440mm |
| Net Weight | 1250KG |
| Gross Weight | 1400KG |
| Power | 1.45KW |
| Monitor | 22''LED with a resolution of 1920*1080 |
