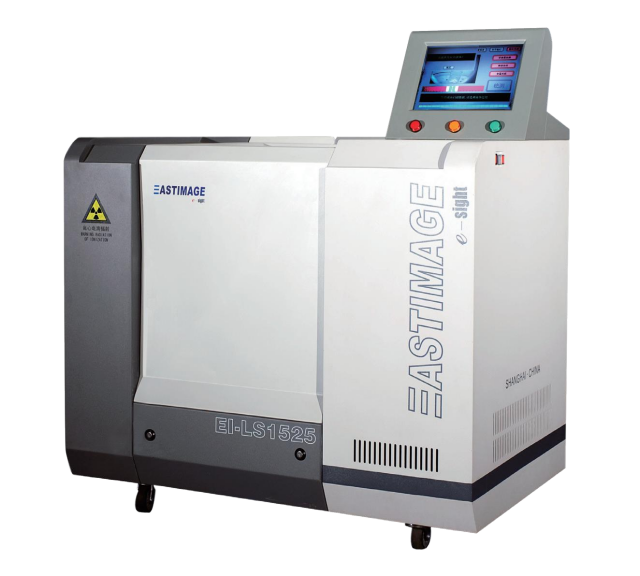

EI-LS1525 X-Ray Liquid Security Inspection Equipment

Keyword:

Category:

Tel:

E-mail：

market@eastimage.com.cn

Consultation

Related products

Description

Product Instruction

Eastimage is an industry-leading provider of security inspection products and safety solutions. Established in 2003, the company has 50,000 square meters of independent property rights of the production base. After more than 20 years of development，Eastimage has become a major supplier and a leading R&D and manufacturing base for security products in China.

★CT technology apply in liquid check, attain the liquid property via Computed tomography scanning

★Detect and differentiate water, milk, alcohol, gas, lacquer thinner, sulphuric acid and the other normal liquid with their dangerous levels of: Safe, Suspect and Danger

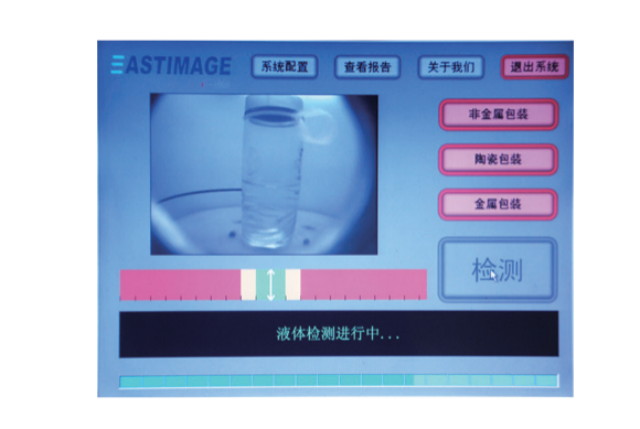

★Video image and CT image of detected object for analysing and tracing

★Detect the liquid in glass, plastic, metal, ceramics and the other normal packing material

★High speed detecting, maximum 20sec per liquid object

★Power on / running self-diagnostics function

★Comply with liquid scanner requirements in DB11/646.6-2009

★Wheel with lock, for easy moving and fixing

Application Area

★Subway Station ★Public security system ★Government Office ★Conference Center ★Border Crossing

Technical Parameter

Object Size...........................................150mm(diameter)×250mm(height)

Detecting speed...................................180 pc/hour

X-ray generator.....................................80 kV combination

Cooling/ Duty cycle...............................Sealed oil cooling 100%

X-ray detection sensor..........................Precision photodiode array

Leakage................................................≤1 µGy/hour(5cm from the cover)

Beam direction......................................horizontal irradiation

Noise ....................................................<60dB(A)

Dimension..............................................1050(L)×720(W)×1205(H)mm

Weight.....................................................350KG

Work temperature & humidity.................0~45 / 20%~95% (non-condensing)

Storage temperature & humidity.............-40~60 / 20%~95% (non-condensing)

Voltage....................................................AC 220 V +10% ~ -15%, 110V is acceptable under special requirements

Frequency...............................................50±3Hz, 60±3Hz is acceptable under special requirements

Consumption...........................................0.5kVA
