Product Instruction
Eastimage is an industry-leading provider of security inspection products and safety solutions. Established in 2003, the company has 50,000 square meters of independent property rights of the production base. After more than 20 years of development，Eastimage has become a major supplier and a leading R&D and manufacturing base for security products in China.

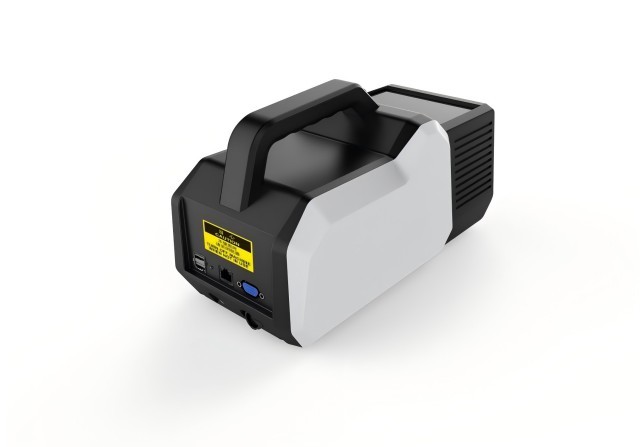

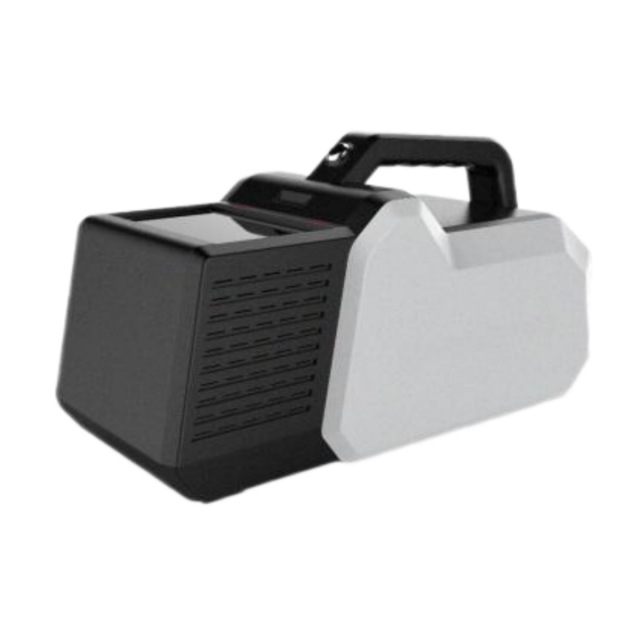

EI-HE300 The portable Handheld Explosives Detector is the latest generation of explosives testing equipment independently developed and produced by our company. Based on the most advanced ion mobility spectrometry (lMS) technology in the world, this product can quickly and accurately detect and judge the types of trace explosives. it can be widely used in subway, ralway, public security, border police, government units, postal logistics.In key security zones, illegal items such as human body clothes, luggage, and explosives left on the surface of goods, and suspicious items can be quickly detected.
Product Features
★The shape is exquisite and easy to cary,
★With positioning function, the map displays the location in real time.
★The man-machine interface is simple and easy to understand.
★Quick detection without waiting;
★The device supports remote operation;
★Support data connection and export of multi-platform systems;
★The test results can be compared and printed, which is convenient and quick;
★lt can identify common explosives and other substances, and can add new samples by yourself.
Main applications
HE300 are widely used in follow field：Metro & Railways，Police & Military，Airport & Customs，Other security，nspection scenes
Technical Specification
Product size：L338mm*W148mm *H175mm.
Display screen：5-inch high-definition touch display
Standby iime：>5 hours
Power：220V AC 50-60Hz / Lithium battery powered
Power adapter：input 220V/AC 50-60Hz: output 16V/DC
Analysis time：<5 s
Detection rate：.≥99%
False positive rate：<1%
Machine weight：<3kg
Warm-up time: 10 min
Working environment：-15℃ ~50℃
Main Function
Detectable explosives：Black Powder, Ammonium Nitrate(AN),TNT,PETN, RDX, nitroglycerin,Octo, Tetryl, Dinitrotoluene (DNT),C4, Semtex, TATP, etc.
Technology used：ion mobility spectrometry (lMS)
Sampling method：test paper wiping sampling and trace partide adsorption (optional)
Battery display function：graphic display of battery usage
Self-diagnosis function：built-in diagnostics, power-on self-test
Password protection：can be set to be unusable by non-operators
Sensitivity：.nanogram
Aarm mode：voice + display information, accurate analysis of explosives or explosives,and display the name
