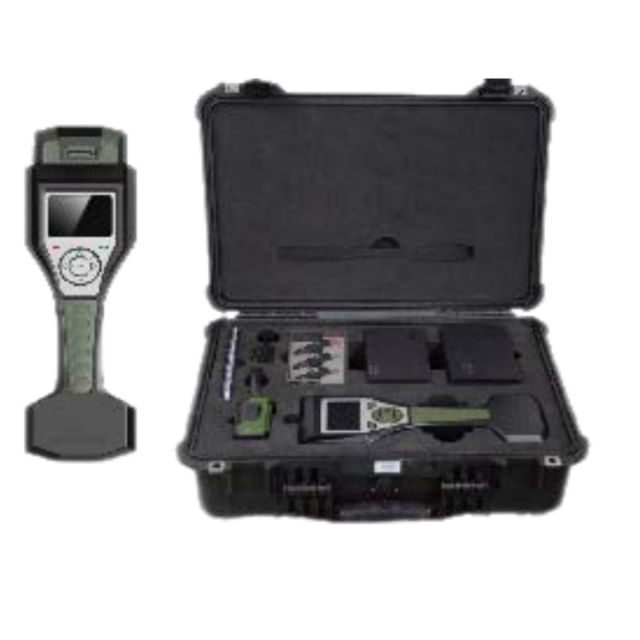

EI-HE600 Handheld Explosives Detector

Keyword:

Category:

Explosive& Narcotics Inpsection

Tel:

+86-021-33909300

E-mail：

market@eastimage.com.cn

Consultation

Related products

Description

Product Instruction

Eastimage is an industry-leading provider of security inspection products and safety solutions. Established in 2003, the company has 50,000 square meters of independent property rights of the production base. After more than 20 years of development，Eastimage has become a major supplier and a leading R&D and manufacturing base for security products in China.

EI-HE600 explosive detector can detect more than 40 kinds of common military, civil, self-made and important explosive intermediates such as TNT, TATP, black gold and black powder. The improved design improves the stability and efficiency of the product, and is especially suitable for batch detection applications such as subways, high-speed rails, and large-scale convention and exhibition centers.

Product Features

★Fluorescent polymer sensing technology.

★Both touching and Non-destructive method for sampling collection .

★Fast inspection and give report

★Fast warming up time

★Short Self-cleaning time

★High sensitivity and low false alarm rate Light weight for portable

★Long battery life

Main applications

HE600 are widely used in follow field：Metro & Railways，Police & Military，Airport & Customs，Other security，nspection scenes

Main explosives can be detected

intermediates including military, civilian and locally made explosives including follow but not limited:

※TNT (TNT)

※Ammonium nitrate (AN)

※Tekuer (TETRYL)

※Dinitrotoluene (DNT)

※Cyclonite (RDX)

※Black powder (BP)

※Tripropylene trioxide (TATP)

※Nitroglycerin (NG)

※Taian (P-N)

※Plastic explosives (C4), etc.

Technical Specification

※Detectable explosives：40 kinds of explosive intermediates including military, civilian and locally made explosives.

※Sampling model：non-contact vapor sampling and contact wipe sampling.

※Alarm model：voice, lighting and wireless alarm mode.

※Sensitivity：≤ 10-12g（TNT）

※Analysis time：≤ 5s

※Self-cleaning time：≤ 10s

※Warm-up time：≤ 10s

※False-alarm rate：≤ 1%

※Display Screen：3.5-inch semi-transparent LCD

※Weight：≤ 1kg（including battery）

※Working time：＞ 8 h

※Working environment：Temp :-10℃ -55℃ Humidity：≤95% RH
