EI-6040 Multi-Energy X-Ray Security Inspection Equipment

Keyword:

Category:

Carrier Baggage lnspection

Tel:

+86-021-33909300

E-mail：

market@eastimage.com.cn

Consultation

Related products

Description

Product Instruction

Eastimage is an industry-leading provider of security inspection products and safety solutions. Established in 2003, the company has 50,000 square meters of independent property rights of the production base. After more than 20 years of development，Eastimage has become a major supplier and a leading R&D and manufacturing base for security products in China.

The EI-6040 multi-energy X-ray security inspection equipment can quickly and accurately detect organic substances, inorganic substances, and mixtures (or light metals) in various packages based on the effective atomic number of the inspected items. Its design is user-friendly and efficient, providing users with a safe and reliable intelligent security inspection system.

Software Function

Image Processing: Black/White, Inverse color, High/Low Penetration, Inorganic/Organic strippingc, Super enhancement, Variable absorption, Pseudo-color, etc.

One-Click Image Processing: Customizable function keys for quick image processing based on user needs.

Image Zoom: Up to 64X dynamic continuous zoom & panning for any area.

Fault Indication: Self-diagnostic function, faults alarm,easy troubleshooting.

Explosive/High-Density Alarm: Suspected explosives/High absorption material in the package can be sound and light alarmed.

Image Recall: Supports unlimited image recall, up to the first image from the current startup session.

Image Storage: 500,000 images storage, with traceability for images from the past 90 days.

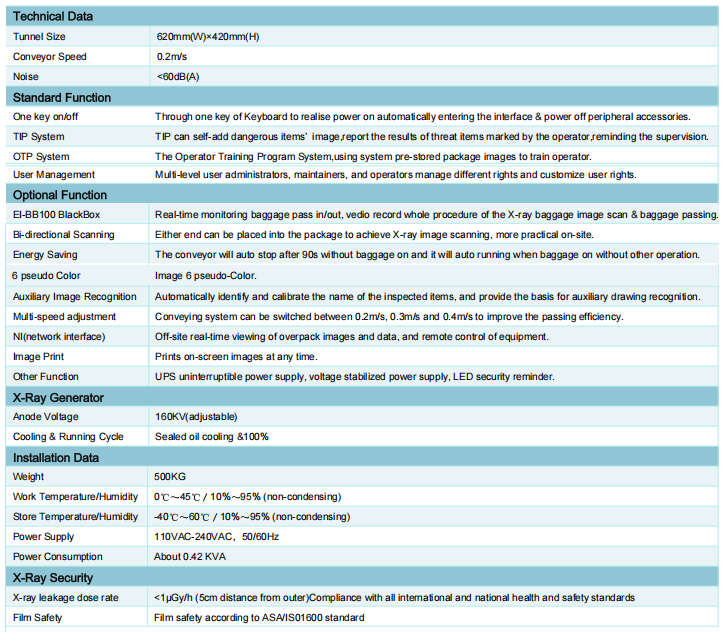

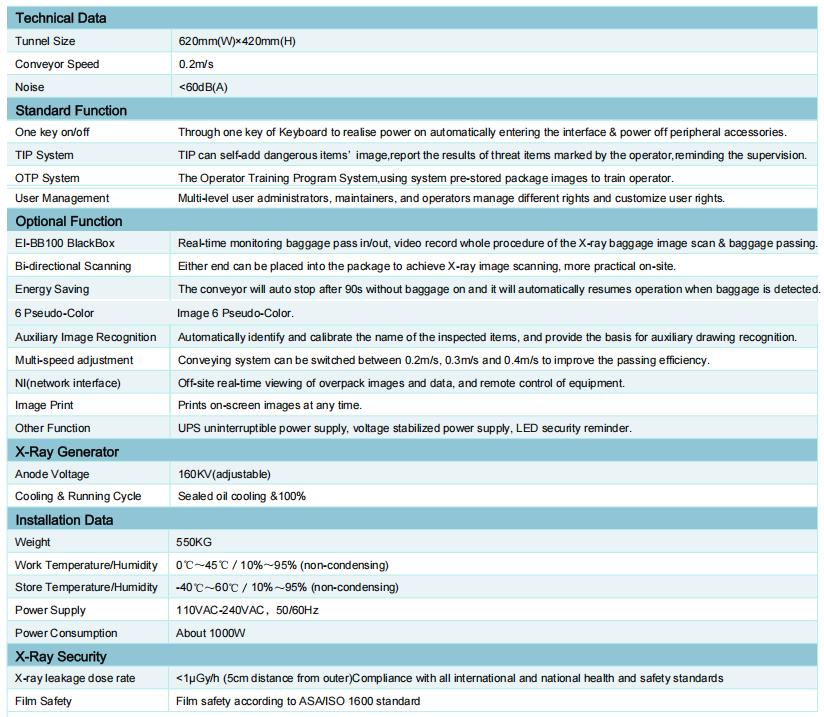

Product Specifications

Penetrating power	Application:34mm Typical:38mm High-spec:40mm
WireResolution	Application:0.0787mm(40AWG) Typical:0.0787mm(40AWG)
StandardLoad	180kg
TunnelSize	620×420mm
Generator	160kV
Noise	65dB
Penetration Resolution	0.254mm（30AWG）
Spatial Resolution	Application:1.3mm Typical:1mm
Conveyor Height	675mm
Scanner Dimensions	2040×850×1285mm
Package Dimensions	22009901500mm
Net Weight	500KG
Gross Weight	550KG
Power	1KW
Monitor	22''LED with a resolution of 1920*1080
