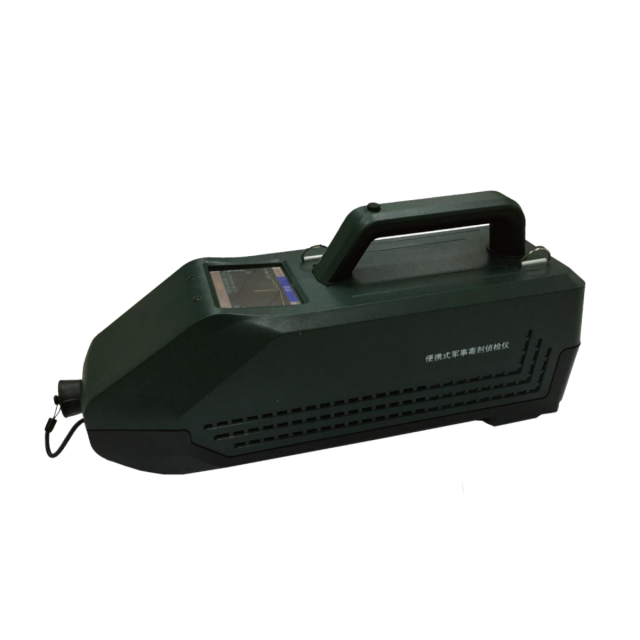

EI-HC300 Handheld Chemicals Trace Detector

Keyword:

Category:

Explosive& Narcotics Inpsection

Tel:

+86-021-33909300

E-mail：

market@eastimage.com.cn

Consultation

Related products

Description

Product Instruction

Eastimage is an industry-leading provider of security inspection products and safety solutions. Established in 2003, the company has 50,000 square meters of independent property rights of the production base. After more than 20 years of development，Eastimage has become a major supplier and a leading R&D and manufacturing base for security products in China.

El-HC300 is an on-line, accuracy and extremely sensiive detecion device for trace chemical warfare agents and toxic industrial chemicals based on lon Moblity Spectrometry (lMS) technology, which is independenlly developed. it has many advanced functions such as optional sensitivily level, hot start, suitable for highlands advantages as easy operation,low-cost consumables and corvenient maintenance.

EI-HC300 has been appled many patents and inspected by the National Quallty Supervise Center of Safely Protection and Alarming System, it has been widely applled for airpor, customs, fronier defense, police, nalional defense, smuggling suppression, fire proteclion and army department etc.

Product Features

★High sensitivity and fast response

★Environmental suitability

★3.5" color TFT touch panel, ease of use

★Display the name and relative concentration of the CWAs

★Portable and lightweight, 3.0 kg in total

Main applications

Detection principle..................Ion Mobility Spectrometry

Substances detected..............CWAs: GB, GD, GF, VX, HD, etc.

Sensitivity................................0.1mg/m3（GB）

Sample Collection...................non-contact vapor collection

Power supply..........................110/220V AC, 60/50HZ

Battery.....................................22.2 V DC, 2 rechargeable batteries of 4h operating time for each

Alarm.......................................Audible and visible, identify and calculate the relative concentration

Calibration.............................. internal automatic calibration

Dimensions（L×W×H）..........367×122×161（mm）

Weight......................................3.0kg (with battery)

Operating temperature.............-10°C to 60°C (14°F to140°F)

Operating humidity...................0-93% non-condensing

Interface...................................USB, RS232

Data Memory............................240000 records
