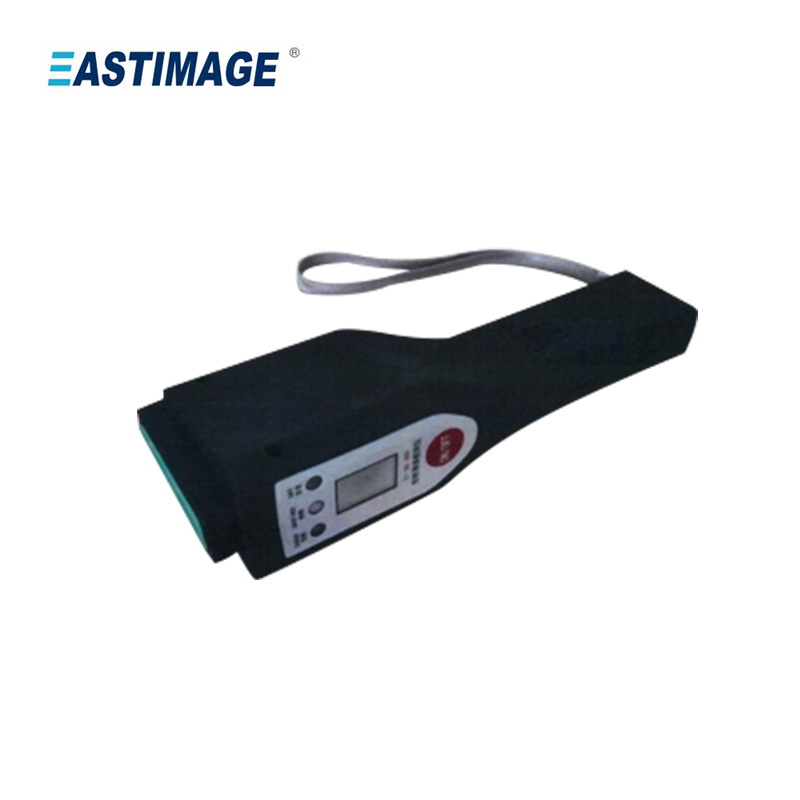

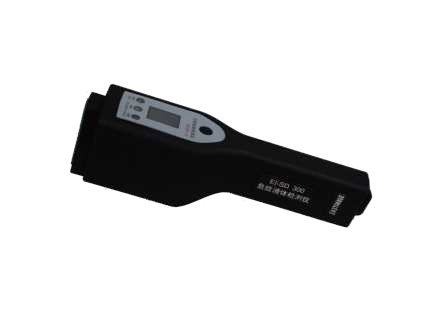

EI-SD300 Handheld Liquid Detector

Keyword:

Category:

Tel:

E-mail：

market@eastimage.com.cn

Consultation

Related products

Description

Product Instruction:

Eastimage is an industry-leading provider of security inspection products and safety solutions. Established in 2003, the company has 50,000 square meters of independent property rights of the production base. After more than 20 years of development，Eastimage has become a major supplier and a leading R&D and manufacturing base for security products in China.

Technology Features:

★Quasi-static computed tomography to define the object inflammable and explosive through measuring liquid dielectric constant and conductivity

★Recognize the hazardous liquids from the safety liquid without directly touching

★Liquid container’s size and the air between the container and detector won’t affect the inspection results.

★To avoid long time worthless battery energy costs, this apparatus is also equipped with automatic shutdown function.

★Keep pressing the button for 10 seconds, the detector will shutdown automatically with “shutdown” display on the LCD

★The detector excludes ion, microwave radiation and other potential radioactive elements, it is safe and harmless to the operator

★Comply with 89/336/ EEC and 2002/95/ EC (RoHS) standards, without lead, harmless to people’s health after use

★For security inspection, protection against terrorist attacks, fire hazard, etc

Applications:

Justic and Court System ；Conference Centre ；Tourist Spot ；Government；Border & Port

Technology Data:

★Technical Theory：Quasi-static computed tomography

★Maximum container thickness.：8mm non-mental container

★Effective distance：Within 3mm

★Effective detecting dangerous liquid：More than 50 kinds of dangerous liquids such as petrol,diesel oil,coal oil,non-aqueous methano, acetone,benzene etc

★Dangerous Liquid Display：Red “X”

★Safe Liquid Display：Green “O”

★Unknown Liquid Display：yellow “？”& “Unknown Liquid”

Install Data:

Working Voltage：3V

Power Consumption：0.75 VA

Operating Current：250mA

Operating temperature/Humidity：.0℃～35℃/0～95% (non-condensing)

Storage Temperature/Humidity：-40℃～60℃/0～95% (non-condensing)

Exterior Dimension：210×50×70mm

Weight：190g（with Battery )
