EI-8065 Multi-Energy X-Ray Security Inspection Equipment

Keyword:

Category:

Luggage & Freight Inspection

Tel:

+86-021-33909300

E-mail：

market@eastimage.com.cn

Consultation

Related products

Description

Product Instruction

Eastimage is an industry-leading provider of security inspection products and safety solutions. Established in 2003, the company has 50,000 square meters of independent property rights of the production base. After more than 20 years of development，Eastimage has become a major supplier and a leading R&D and manufacturing base for security products in China.

The EI-8065 multi-energy X-ray security inspection equipment uses top-view imaging and has a larger channel size, allowing it to cover more luggage and packages.

Software Function

Image Processing: Black/White, Inverse color, High/Low Penetration, Inorganic/Organic stripping, Super enhancement, Variable absorption, Pseudo-color, etc.

One-Click Image Processing: Customizable function keys for quick image processing based on user needs.

Image Zoom: Up to 64X dynamic continuous zoom & panning for any area.

Fault Indication: Self-diagnostic function, faults alarm,easy troubleshooting.

Explosive/High-Density Alarm: Suspected explosives/High absorption material in the package can be sound and light alarmed.

Image Recall: Supports unlimited image recall, up to the first image from the current startup session.

Image Storage: 500,000 images storage, with traceability for images from the past 90 days.

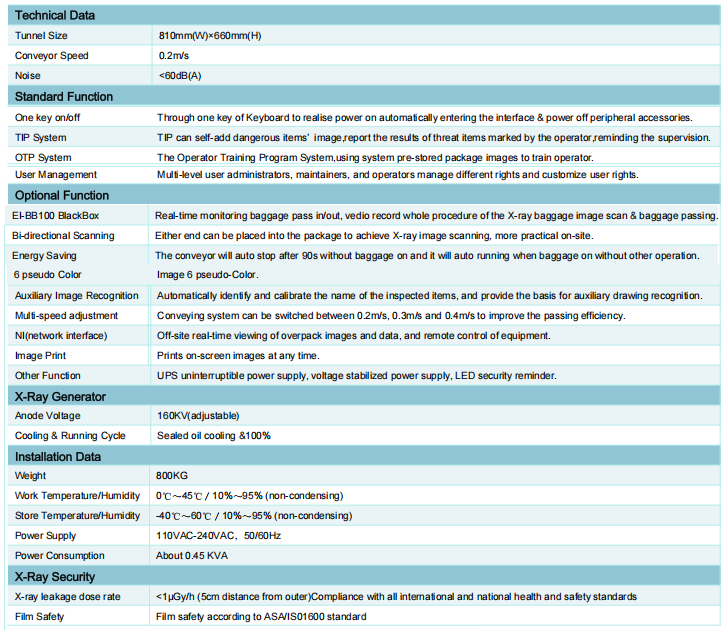

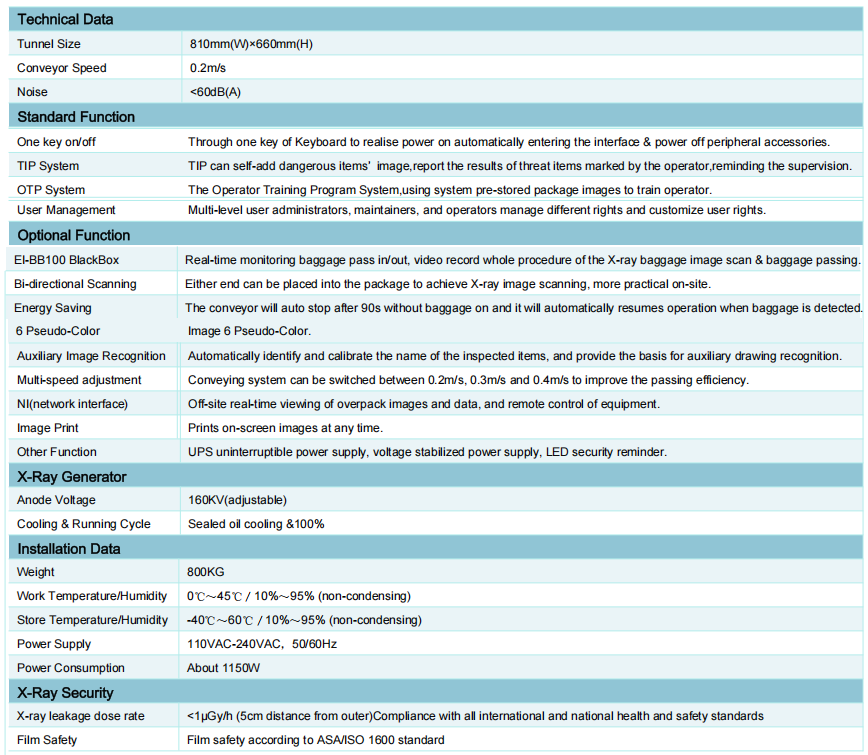

Product Specifications

Penetrating power	Application:34mm Typical:36mm High-spec:40mm
WireResolution	Application:0.101mm（38AWG） Typical:0.0787mm(40AWG)
StandardLoad	200kg
TunnelSize	810×660mm
Generator	160kV
Noise	60dB
Penetration Resolution	0.320mm（28AWG）
Spatial Resolution	Application:1.6mm Typical:1.3mm
Conveyor Height	300mm
Scanner Dimensions	3130×1110×1505mm
Package Dimensions	280013401830mm
Net Weight	700KG
Gross Weight	800KG
Power	1.15KW
Monitor	22''LED with a resolution of 1920*1080
