EI-5536 Multi-Energy X-Ray Security Inspection Equipment

Keyword:

Category:

Carrier Baggage lnspection

Tel:

+86-021-33909300

E-mail：

market@eastimage.com.cn

Consultation

Related products

Description

Product Instruction

Eastimage is an industry-leading provider of security inspection products and safety solutions. Established in 2003, the company has 50,000 square meters of independent property rights of the production base. After more than 20 years of development，Eastimage has become a major supplier and a leading R&D and manufacturing base for security products in China.

The EI-5536 X-ray security inspection equipment is primarily designed with convenience as its core feature. It has a compact appearance and extended entry and exit channels, resulting in lower leakage doses and enhanced safety.

Software Function

Image Processing: Black/White, Inverse color, High/Low Penetration, Inorganic/Organic strippingc, Super enhancement, Variable absorption, Pseudo-color, etc.

One-Click Image Processing: Customizable function keys for quick image processing based on user needs.

Image Zoom: Up to 64X dynamic continuous zoom & panning for any area.

Fault Indication: Self-diagnostic function, faults alarm,easy troubleshooting.

Explosive/High-Density Alarm: Suspected explosives/High absorption material in the package can be sound and light alarmed.

Image Recall: Supports unlimited image recall, up to the first image from the current startup session.

Image Storage: 500,000 images storage, with traceability for images from the past 90 days.

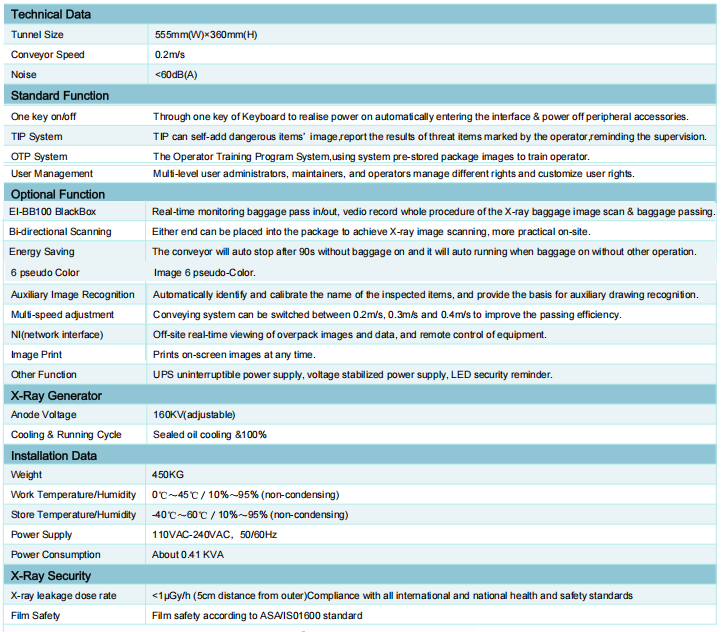

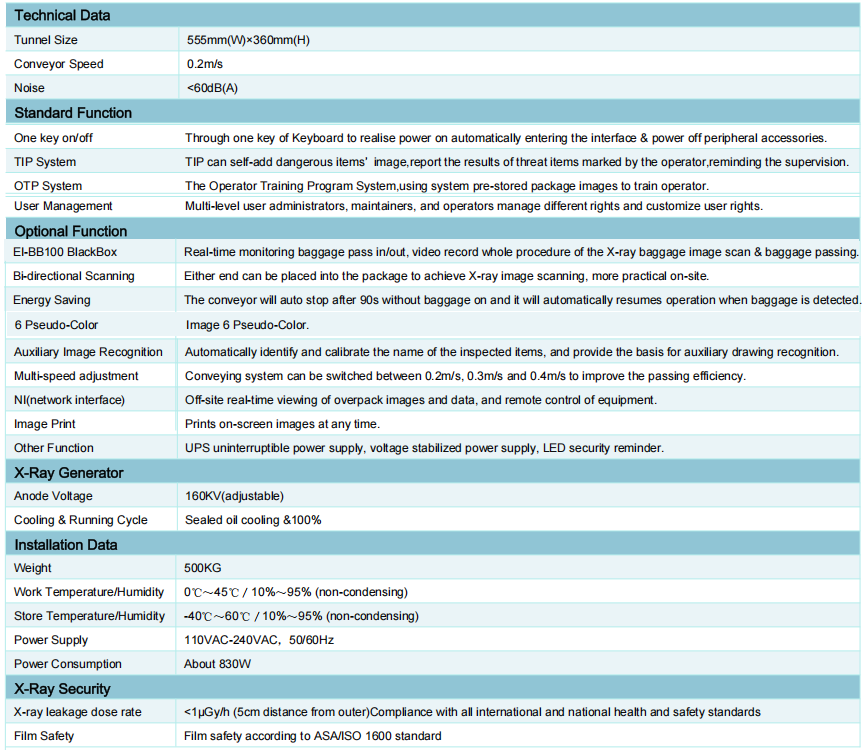

Product Specifications

Penetrating power	Application:36mm Typical:38mm High-spec:40mm
WireResolution	Application:0.0787mm(40AWG) Typical:0.0787mm(40AWG)
StandardLoad	150kg
TunnelSize	555×360mm
Generator	160kV
Noise	60dB
Penetration Resolution	0.254mm（30AWG）
Spatial Resolution	Application:1.3mm Typical:1mm
Conveyor Height	680mm
Scanner Dimensions	1780×810×1215mm
Package Dimensions	194010001535mm
Net Weight	450KG
Gross Weight	500KG
Power	0.83KW
Monitor	22''LED with a resolution of 1920*1080
